Subscriptions

Subscriptions allow clients to listen to real-time messages from the server. In GraphQL, it’s straightforward to enable subscriptions on any type.

We’re overhauling Dgraph’s docs to make them clearer and more approachable. If you notice any issues during this transition or have suggestions, please let us know.

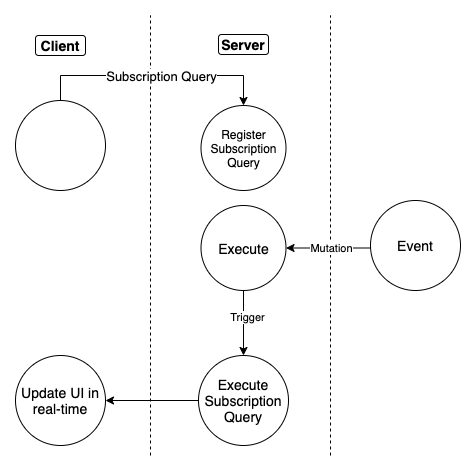

Subscriptions allow clients to listen to real-time messages from the server. The client connects to the server with a bi-directional communication channel using the WebSocket protocol and sends a subscription query that specifies which event it’s interested in. When an event is triggered, the server executes the stored GraphQL query, and the result is sent back to the client using the same communication channel.

The client can unsubscribe by sending a message to the server. The server can also unsubscribe at any time due to errors or timeouts. A significant difference between queries or mutations and subscriptions is that subscriptions are stateful and require maintaining the GraphQL document, variables, and context over the lifetime of the subscription.

Enable subscriptions in GraphQL

In GraphQL, it’s straightforward to enable subscriptions on any type. You can add the @withSubscription directive to the schema as part of the type definition, as in the following example:

type Todo @withSubscription {
  id: ID!
  title: String!
  description: String!
  completed: Boolean!
}

@withSubscription with @auth

You can use @auth access control rules in conjunction with @withSubscription.

Consider following Schema that has both the @withSubscription and @auth directives defined on type Todo.

type Todo
  @withSubscription
  @auth(
    query: {
      rule: """
      query ($USER: String!) {
        queryTodo(filter: { owner: { eq: $USER } } ) {
          __typename
        }
      }
      """
    }
  ) {
  id: ID!
  text: String! @search(by: [term])
  owner: String! @search(by: [hash])
}
# Dgraph.Authorization {"Header":"X-Dgraph-AuthToken","Namespace":"https://dgraph.io/jwt/claims","jwkurl":"https://xyz.clerk.accounts.dev/.well-known/jwks.json","audience":["dgraph"],"ClosedByDefault":true}

The generated GraphQL API expects a JWT token in the X-Dgraph-AuthToken header and uses the USER claim to apply a Role-based Access Control (RBAC). The authorization rule enforces that only to-do tasks owned by $USER are returned.

WebSocket client

Dgraph uses the WebSocket protocol subscription-transport-ws.

Clients must be instantiated using the WebSocket URL of the GraphQL API which is your Dgraph GraphQL endpoint with https replaced by wss.

If your Dgraph endpoint is https://<path> the WebSocket URL is wss://<path>

If your GraphQL API is configured to expect a JWT token in a header, you must configure the WebSocket client to pass the token. Additionally, the subscription terminates when the JWT expires.

Here are some examples of frontend clients setup.

Urql client setup in a React app

In this scenario, we’re using the urql client and subscriptions-transport-ws modules.

In order to use a GraphQL subscription query in a component, you need to

• instantiate a subscriptionClient
• instantiate a urql client with a subscriptionExchange using the ubscriptionClient

import {
  Client,
  Provider,
  cacheExchange,
  fetchExchange,
  subscriptionExchange,
} from "urql"
import { SubscriptionClient } from "subscriptions-transport-ws"

const subscriptionClient = new SubscriptionClient(
  process.env.REACT_APP_DGRAPH_WSS,
  { reconnect: true, connectionParams: { "X-Dgraph-AuthToken": props.token } },
)

const client = new Client({
  url: process.env.REACT_APP_DGRAPH_ENDPOINT,
  fetchOptions: { headers: { "X-Dgraph-AuthToken": `Bearer ${props.token}` } },
  exchanges: [
    cacheExchange,
    fetchExchange,
    subscriptionExchange({
      forwardSubscription: (request) => subscriptionClient.request(request),
    }),
  ],
})

In this example,

• process.env.REACT_APP_DGRAPH_ENDPOINT is your Dgraph GraphQL endpoint
• process.env.REACT_APP_DGRAPH_WSS is the WebSocket URL
• props.token is the JWT token of the logged-in user.

Note that we pass the JWT token in the GraphQL client using fetchOptions and in the WebSocket client using connectionParams.

Assuming we use graphql-codegen, we can define a subscription query:

import { graphql } from "../gql"

export const TodoFragment = graphql(`
  fragment TodoItem on Todo {
    id
    text
  }
`)

export const TodoSubscription = graphql(`
  subscription myTodo {
    queryTodo(first: 100) {
      ...TodoItem
    }
  }
`)

and use it in a React component

import { useQuery, useSubscription } from "urql";
...
const [messages] = useSubscription({ query: MyMessagesDocument});

That’s it, the react component is able to use messages.data.queryTodo to display the updated list of to dos.

Apollo client setup

To learn about using subscriptions with Apollo client, see a blog post on GraphQL Subscriptions with Apollo client.

To pass the user JWT token in the Apollo client,use connectionParams, as follows.

const wsLink = new WebSocketLink({
  uri: `wss://${ENDPOINT}`,
  options: {
    reconnect: true,
    connectionParams: {  "<header>": "<token>", },});

Use the header expected by the Dgraph.Authorization configuration of your GraphQL schema.

Subscriptions to custom DQL

You can also apply @withSubscription directive to custom DQL queries by specifying @withSubscription on individual DQL queries in type Query, and those queries are added to type subscription.

For example, see the custom DQL query queryUserTweetCounts below:

type Query {
  queryUserTweetCounts: [UserTweetCount]
    @withSubscription
    @custom(
      dql: """
      query {
        queryUserTweetCounts(func: type(User)) {
          screen_name: User.screen_name
          tweetCount: count(User.tweets)
        }
      }
      """
    )
}

queryUserTweetCounts is added to the subscription type, allowing users to subscribe to this query.

Currently, Dgraph only supports subscriptions on custom DQL queries. You can’t subscribe to custom HTTP queries.

Starting in release v21.03, Dgraph supports compression for subscriptions. Dgraph uses permessage-deflate compression if the GraphQL client’s Sec-Websocket-Extensions request header includes permessage-deflate, as follows: Sec-WebSocket-Extensions: permessage-deflate.
